1992 - The design of the Atari Falcon is based loosely on the ST range of systems.  Software wise, the most obvious feature being the GEM interface, was improved aesthetically to include 3D shading of windows and icons, and upgraded to ensure the new features of the machine could be accessed through GEM and TOS.  Improvements were also made to the desktop commands and range of available options.

MultiTos was finally released to bring the Atari computer range pre-emptive multi-tasking for the first time.

From a hardware point-of-view, the machine was a huge technical advancement from the ST and TT range.  Atari had now increased the standard colour palette of the new VIDEL Video processor to over  244,000 colours, and provided VGA screen resolutions with up to 65,000 on screen.  It was also decided to add a degree of backward compatibility with the ST by adding the older screen resolution options.  Memory capacity was increased to a maximum of 16Mb (14.2Mb working), compared to the theoretical 4Mb maximum capacity of the ST/E.

Sound was important to the Atari range, but suffered in the past from a low-cost, low-featured sound generator based on the infamous YM-2149, which was seen as pretty basic even when the ST first launched.  Although the addition of MIDI ports on the ST/TT put Atari in the driving seat as far as remote sound control was concerned, internal sound features were always criticised.  This was rectified to a degree with the addition of PCM (Pulse Code Modulation) sound features in the STE/TT, but it was still lacklustre in comparison to the Amiga "Paula" or the newer sound systems emerging for the PC.

A radical rethink to the internal sound gave the Falcon not only the YM-2149 (mostly for compatibility reasons), but additional DAC/ADC chips enabling 8 track, 16bit DMA (Direct memory Access) with sampling rates up to 50 KHz.  If you consider a CD produces sound at up to 44Khz, this was a sound system with real potential for professional musicians.

Of course, the real trick inside the Falcon is the Motorola DSP (56001).  The Digital Signal Processor was designed primarily for sound manipulation, but it also could be used to process complex instructions for use in voice communication and speech synthesis.  This particular chip had a clock speed of 32Mhz, in addition to the Falcon's 16Mhz 68030 CPU.  The Falcon also had a direct connector port to talk directly to external devices via the DSP.

An internal direct connector slot was placed on the motherboard to allow either a i286, i386 or i486 (or compatible) CPU to be connected for direct DOS compatibility.  This was never really exploited commercially.

With an array of ports, including AppleTalk LAN, SCSI 2 and the trademark MIDI ports, all for under $1000.00.  The Falcon seemed to secure the future of Atari's computer division, but unfortunately, the Falcon never really got the support from its parent company.

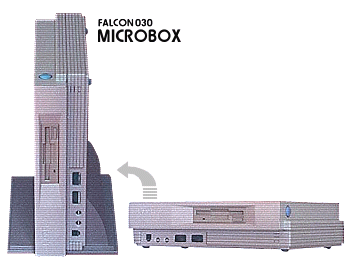

The Falcon was also slightly flawed by the choice to use a 16Mhz CPU, and additionally, by the 16-Bit data bus.  This was all going to be rectified by a new Falcon030, called the Microbox.  It would use a similar sized motherboard with a 32-Bit bus, and possibly a 32Mhz 68030.  There was also talk of expansion slots as seen on the latest 486 systems of the day.  But they would be for the Falcon040, which only got to the prototype stages before the axe fell on the computer division.

The Falcon was released in the same style chassis as the older ST/E range, and this did little to impress users, and along-side an ST/E in a store, people couldn't tell the difference because they looked so similar.  Perhaps the computer division were having trouble with budgets during this time, and the only way to get the Falcon030 out the door was to use existing components/suppliers, or they were given a chance to see how the system would sell before committing to new computer projects, we just don't know the answer.

Whatever the reasons, the Atari Falcon had a tough job convincing people it was bigger and better, especially as it looked the same as its big brother (by some 5 years).  Technically, the Falcon030 is a powerhouse for its time, and it would have certainly faired much better with its new case design and technical upgrades - today, they are a valuable commodity for musicians, hobbyists and collectors alike.  The Atari Falcon was cancelled in 1993, and we can only estimate that the production run was about 25,000 units worldwide based on European sales.

At the beginning of 1995, a German company called C-Lab agreed licensing terms with Atari to produce the Falcon 030 once again.  Improving the sound system and utilising the same motherboard manufacturer as Atari, C-Lab released the Falcon MK.II.  It was still the same specification except for the tweaks made to the audio circuitry, and the increased capacity of the internal hard-drive from the Atari standard 80Mb to a more respective 512Mb which was needed for digital sound work.  It cost nearly $3,000.00 for a MK.II, so sales were always going to be limited to the professional musicians.  In 1996 a second version was launched called the MK.X, but this unit soon disappeared, and with it all traces of the mighty Falcon.
